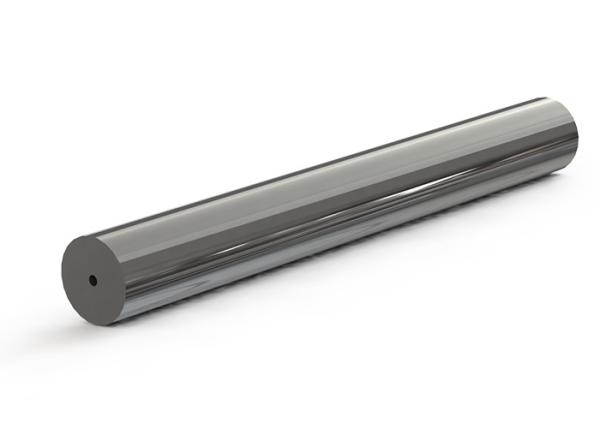

High Purity Tungsten Carbide Rods With 1 Straight Coolant Hole

Tungsten Carbide Ground Rods with 1 Straight Coolant Hole for Dirlling and Milling Tools

Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

100% raw material;
Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 2-42mm, length 310/330mm;

l Use for Finish milling

l Grind with h6/h5 tolerance

Diameter		Length		Hole Spac		amax(mm)

D(mm)	Tolerance	L(mm)	Tolerance	d(mm)	Tolerance
4.0	h5	330	+2.0～+6.0	0.60	±0.10	0.10
6.0	h5	330	+2.0～+6.0	1.00	±0.15	0.15
8.0	h5	330	+2.0～+6.0	1.30	±0.15	0.15
10.0	h5	330	+2.0～+6.0	2.00	±0.15	0.20
12.0	h5	330	+2.0～+6.0	2.00	±0.15	0.30
12.0	h5	330	+2.0～+6.0	3.00	±0.15	0.30
13.0	h5	330	+2.0～+6.0	2.00	±0.15	0.34
14.0	h5	330	+2.0～+6.0	2.00	±0.15	0.37
14.0	h5	330	+2.0～+6.0	3.00	±0.15	0.37
16.0	h5	330	+2.0～+6.0	2.00	±0.2	0.40
16.0	h5	330	+2.0～+6.0	3.00	±0.2	0.40
18.0	h5	330	+2.0～+6.0	3.00	±0.2	0.50
20.0	h5	330	+2.0～+6.0	2.00	±0.25	0.50
20.0	h5	330	+2.0～+6.0	3.00	±0.25	0.50
22.0	h5	330	+2.0～+6.0	3.00	±0.25	0.50
24.0	h5	330	+2.0～+6.0	4.00	±0.25	0.50
25.0	h5	330	+2.0～+6.0	4.00	±0.25	0.50
28.0	h5	330	+2.0～+6.0	4.00	±0.25	0.50
30.0	h5	330	+2.0～+6.0	5.00	±0.25	0.50
32.0	h5	330	+2.0～+6.0	5.00	±0.25	0.50
